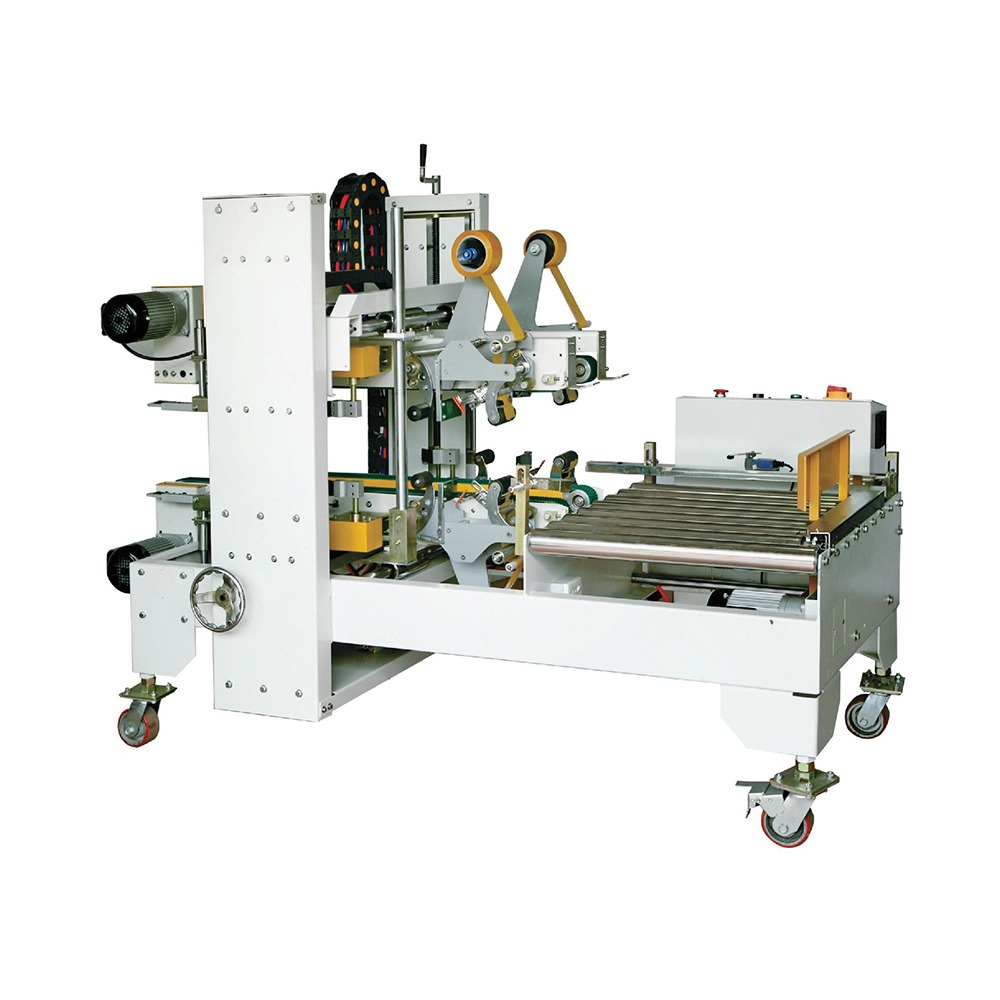

● The machine design boasts operation simplicity, cost effectiveness, durability, safety. and low fault rate.
● Machine width and height can be adjusted according to carton specifications. The machine can seal cartons of the same type at the same time.
● After the middle, upper and lower openings of the carton are sealed by the front section sealing machine, the carton enters the 90° structure and is pushed by the pushing board into the corner and edge structure for automatically sealing and smoothing the four corners and edges at the same time.
● After the sealing, the carton looks eye-pleasing. Besides, the sealing is quick and saves labor force.
● The machine is installed with a blade protection device to avoid stabbing during operation.
● The machine can be connected with the TPA, TPB, or TPC model to complete carton sealing.
Carton dimensions：L320-500×W200-500×H180-500mm
Table height：600mm The height can be adjusted according to customer requirements
Sealing speed：480-600 carton/hour
Machine dimensions：L1900×W1130×H1530mm
Power：220/380V 1∮-3∮50-60Hz
Air pressure：6kg/cm3
Tape：W48mm、60mm、75mm×L1000yard
Net weight of machine：400kg
